Balance Free Suspension for Z-900

Outstanding damper responsiveness enhances handling and ride comfort for a more enjoyable ride.
Incorporates Balance-Free technology, developed through world-class racing.
Features a separate sub-tank structure that isolates the gas and oil chambers.
Designed for easy bolt-on installation.

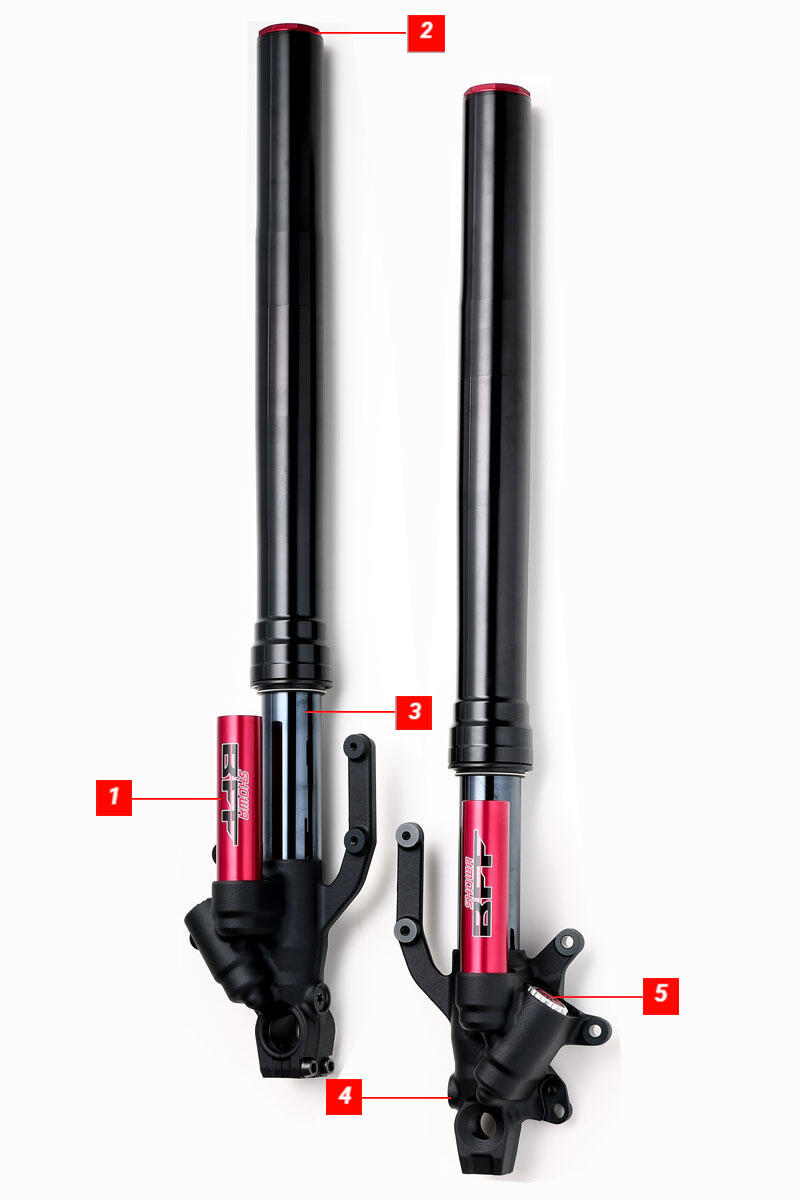

STRUCTURE structure

1

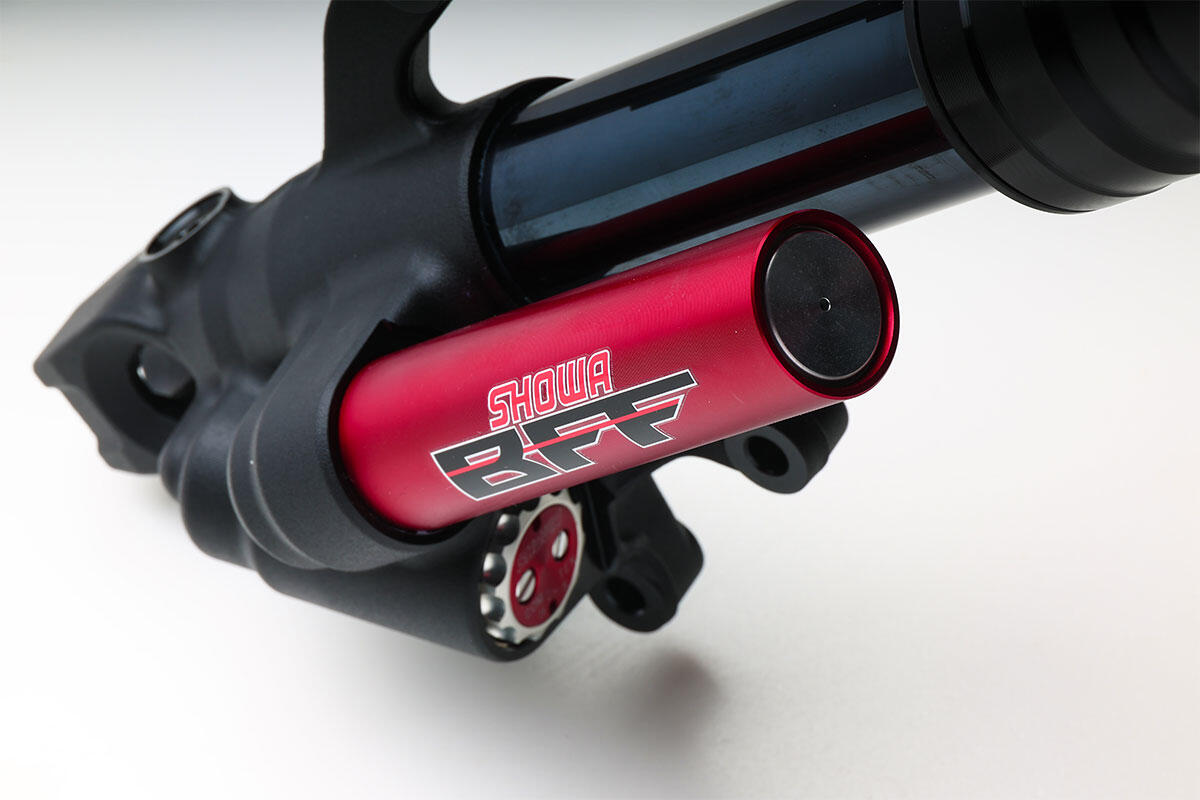

Sub-Tank Structure

Gas pressurisation suppresses cavitation (World's First Axial Type)

2
Spring Preload

Adjustable with tools or coins (Improved Operability)
*Spring is developed from proprietary materials (High Tensile Strength, Lightweight, Premium Quality)

3

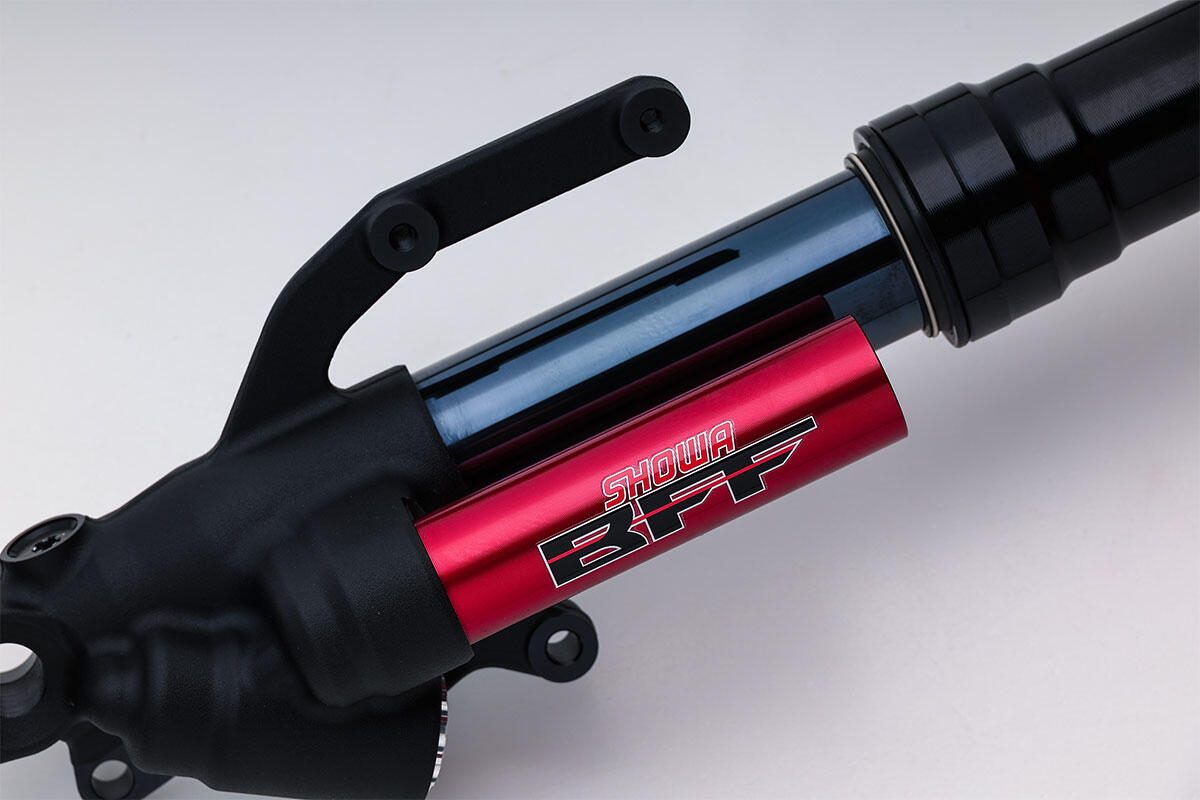

Slide Pipe

Navy blue titanium coating (Optimised Performance)
Diameter Upgrade: Standard φ41mm ⇒ φ43mm (Enhanced Handling)

4
Axle Holder

Forged aluminum axle holder

5

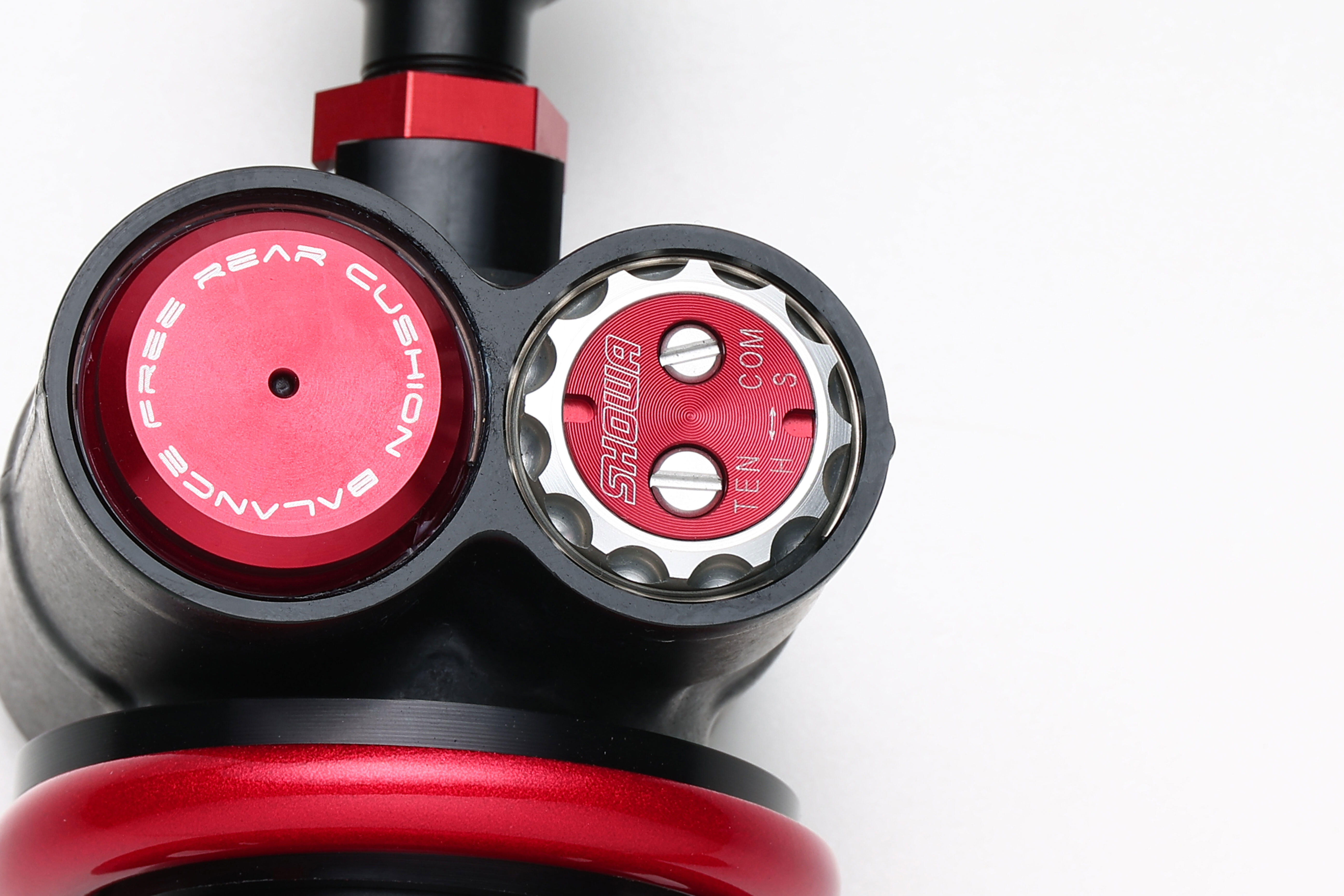

Damping Force Adjuster

Continuously adjustable for both compression and rebound damping (Enhanced Functionality)

FEATURES Features

Ryo Oike

Motorcycle Business Div Global Design Mgmt. Gr

scroll

The first SHOWA Balance Free Suspension for custom bikes was released three years ago for the Z900RS. It incorporates advanced technology developed through racing expertise and OE production know-how. For this release of the BFF/BFRC specifically tuned for the Z900, we've applied settings befitting a streetfighter model.

Settings

In short, this suspension emphasizes a sporty feel, making riding on winding roads more enjoyable and comfortable. It's tuned to provide clearer feedback from the road surface to the rider and to deliver a stable feel during acceleration and deceleration.

Balance-Free Structure

Above all, the defining feature of the Balance-Free Suspension is its dual-tube structure, which eliminates pressure balance constraints. By ensuring a dedicated oil return passage, pressure is constantly maintained at equal levels, enabling the damper to achieve a consistently balanced state. This increases the pressure-bearing area and enhances responsiveness. Furthermore, by separating the TEN and COMP flow paths, each can be individually adjusted. The ability to incorporate this structure at this price point is only possible thanks to SHOWA's OE production know-how.

Titanium Coating

Applying titanium coating to the slide pipe and rod, followed by surface polishing, reduces friction. This improves responsiveness in the micro-stroke range compared to conventional plating processes, enhancing the rider's road feel and vehicle handling.

Performance Balance Chart

spider chart
